INTRODUCTION
On the 25th of May, 2009, the Democratic People's Republic of Korea (DPRK) conducted its second nuclear weapons test. Once again, the DPRK has become an area of focus for intelligence analysts and politicians as the next course of action for the West is determined. While it remains to be seen whether or not tensions between the DPRK, its southern neighbor, and the rest of the world will be mitigated, one fact remains: the DPRK is developing a nuclear arsenal.
NUCLEAR TESTING
The DPRK has detonated two nuclear devices in the past three years. The first test took place in October of 2006, with the second taking place in May of 2009. Seismic monitoring has provided analysts with a general location of both test events, along with a rough determination of the yield of both tests. The first test seems to have been a sub-kiloton event, with the second test falling in the 1-3 kiloton range. The test location is roughly 65 kilometers northwest of the Musudan-Ri missile test complex, in the isolated northeastern sector of the DPRK.
THE TEST SITE
The DPRK's nuclear test site consists of multiple areas. The isolated location is ideal for this type of testing; there is no civillian presence to speak of, and the terrain allows for UGFs to be employed at will to protect and mask sensitive activity. The bulk of the test area consists of three likely test locations, five unidentified locations, and a rail transfer point located south of Sumunnae, representing the only significant source of transportation into the area.

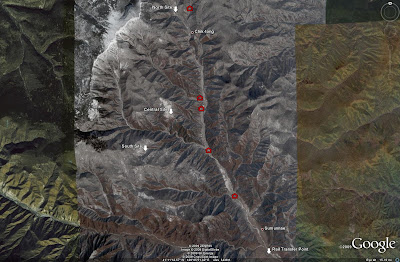

The locations of the identified facilities and areas in the DPRK's nuclear test area can be seen in the image below. Unidentified facilities are marked as red buildings.
Two of the possible test locations are similar, with the third site being of a wholly different configuration. Of the two similar sites, the northern site is commonly associated with the DPRK's nuclear testing. Whether this is due to intelligence sources leaking information or due to imagery interpretation, it is interesting to note that the southern site has escaped mention, as has the central site. Moreover, Globalsecurity offers
before and after imagery of the northern site captured at the time of the 2006 nuclear test. While the imagery is not the highest quality, it should be pointed out that there does not appear to be any significant difference or change in activity at the northern site in either image. This begs the question: was this the actual site of the October 2006 test?
After the 2009 test event, the CTBTO provided coordinate data for the presumed test events of 2006 and 2009, along with probability ellipses indicating the area around the theorized detonation sites where the event was likely located. All three of the identified facilities in the test area fall within the boundaries of both the 2006 and 2009 probability ellipses.
While there is no firm evidence to suggest which site was the "host" to which event, some conclusions may be drawn. It is likely that at least one event took place at the northern site, given that all of the coordinates released by various agencies such as the USGS and the CTBTO for the epicenters of the 2006 and 2009 events are arrayed roughly in an east-west line just north of the northern site. This suggests that at least one, and perhaps both, of the test events took place at the northern site. The central site is not as expansive as the other facilities, and features an antenna farm of some sort, suggesting that it may represent a monitoring station for the two other facilities. The devices seen mounted atop the masts to the north of the facility may be atmospheric sampling devices meant to track the unintended release of radiation from the underground tests.

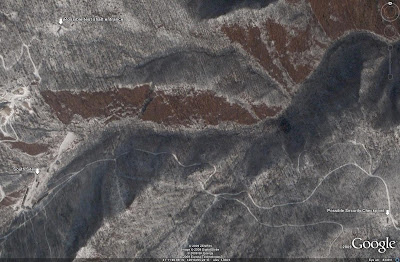

Details of the northern, central, and southern sites can be seen in the images below. The first image depicts the north site. A possible security checkpoint for entry into the test area can be seen, as well as the likely location of the test shaft itself.

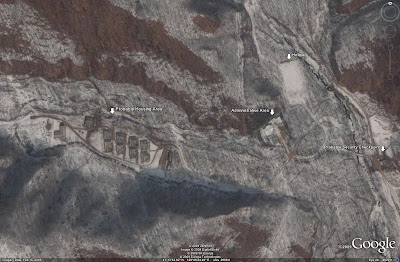

Next, the central site can be seen. This site contains fewer structures than the north or south sites. In fact, the facilities on the western edge of the main area appear to possibly be in disrepair, suggesting that this may have been an existing facility partially converted to use for monitoring the nuclear testing grounds. To the north, the possible sensor masts can clearly be seen.
Finally, the southern site is depicted. Notice the similar layout to the northern site, with the buildings in the main area of the facility organized in a general "U" shape. There is also a possible security checkpoint, and a facility which may be housing the opening to the vertical test shaft. More likely, however, would be positioning the entrance to a vertical or horizontal shaft inside the main facility itself, given that it is situated in a valley between two ridges.
The remaining four unidentified facilities in the area likely perform administrative and support functions for the test range. One such facility, seen in the image below, contains a helipad and apparent housing structures.
Two of the possible test locations are similar, with the third site being of a wholly different configuration. Of the two similar sites, the northern site is commonly associated with the DPRK's nuclear testing. Whether this is due to intelligence sources leaking information or due to imagery interpretation, it is interesting to note that the southern site has escaped mention, as has the central site. Moreover, Globalsecurity offers before and after imagery of the northern site captured at the time of the 2006 nuclear test. While the imagery is not the highest quality, it should be pointed out that there does not appear to be any significant difference or change in activity at the northern site in either image. This begs the question: was this the actual site of the October 2006 test?
Next, the central site can be seen. This site contains fewer structures than the north or south sites. In fact, the facilities on the western edge of the main area appear to possibly be in disrepair, suggesting that this may have been an existing facility partially converted to use for monitoring the nuclear testing grounds. To the north, the possible sensor masts can clearly be seen.
Finally, the southern site is depicted. Notice the similar layout to the northern site, with the buildings in the main area of the facility organized in a general "U" shape. There is also a possible security checkpoint, and a facility which may be housing the opening to the vertical test shaft. More likely, however, would be positioning the entrance to a vertical or horizontal shaft inside the main facility itself, given that it is situated in a valley between two ridges.
The remaining four unidentified facilities in the area likely perform administrative and support functions for the test range. One such facility, seen in the image below, contains a helipad and apparent housing structures.
